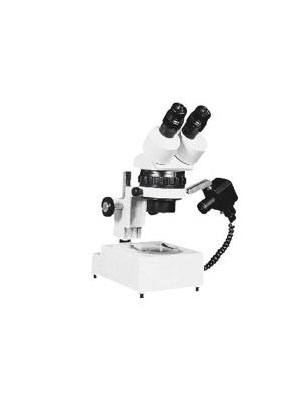

Stero Zoom Binocular Microscope

Optical Head:Zoom Binocular, 45º Inclination

Objectives:Highly Corrected Continuous Zoom 1x ~ 5x

Eye Pieces:10x Extra Wide Field (Paired)

Magnifications:Ranging from 5X to 200X (Corresponding to Eye Pieces and Auxiliary Objectives used)

Inter Pupillary Distance:Adjustable From 55 to 75mm

Adopters:Adjustable from -6 to +6 on both sides.

Working Distance:90mm

Focusing:150mm Course and 50mm Fine Focusing.

Illumination:Incident light and bottom light are 12V, 20W each, can be used simultaneously.

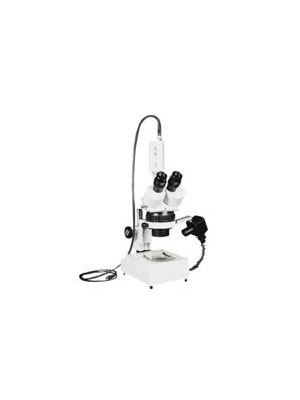

Stero Zoom Trinocular Microscope

Optical Head:Zoom Trinocular, 45º Inclination

Objectives:Highly corrected continuous zoom 1X ~ 5X

Eye Pieces:10x Extra Wide Field (Paired)

Magnifications:Ranging from 5X to 200X (Corresponding to Eye Pieces and Auxiliary Objectives used)

Inter Pupillary Distance:Adjustable From 52 to 75mm

Adopters:Adjustable from -6 to +6 on both sides.

Working Distance:90mm

Focusing:150mm Course and 50mm Fine Focusing.

Illumination:Incident light and bottom light are 12V, 20W each, can be used simultaneously.

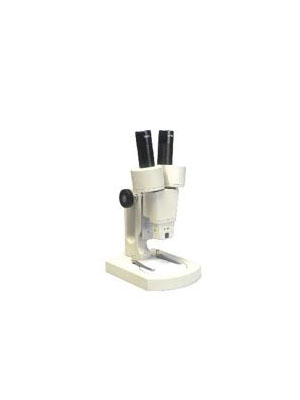

Steroscopic Microscope, Student

Features:

Eye pieces - Wide Field 10X or 15X paired.

Fixed Objective - 2X

Magnification - 20X or 30X.

Adjustable eye-piece tubes to suit individual inter-pupillary distances from 55 to 75 mm

Working distance of 90 mm and field of view 12 mm.

Flat circular glass stage plate of 100 mm with 2 stage clips.

Focusing by rack and pinion mechanism

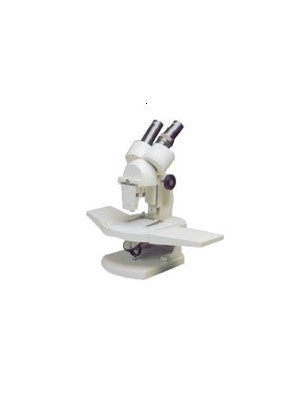

Steroscopic Microscope, Research

Binocular head inclined at 45º with independent compensating adjustment on right eye tube, head rotatable through 360º, Wide Field Eye-pieces 10X or 15X paired.

Features:

Paired Sliding Objectives of 2X and 4X.

Field of View and Working Distance.

Magnification - 20X to 60X.

Adjustable eye piece tubes to suit individual inter-pupillary distance from 55 to 75mm

Focusing by rack and pinion mechanism

Interchangeable white/transparent stage plate

Removable trans-illumination base for natural light.

Detachable hand rests.

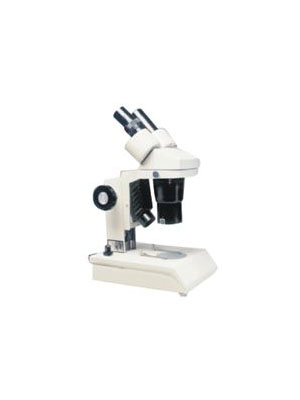

Steroscopic Microscope, Advanced

An advanced model of the Stereoscopic Microscope suitable for laboratories and precision work giving sharp, erect 3-dimensional viewing.

Features:

Binocular head inclined at 45º with independent compensating adjustment on right eye tube, head rotatable through 360º - Wide Field Eye-pieces 10X or 15X paired.

Achromatic Objectives of 2X and 4X on quick-change turret.

Field of View and Working Distance.

Magnification - 20X to 60X.

Focusing by rack and pinion mechanism

Adjustable eye piece tubes to suit individual inter-pupillary distance from 55 to 75mm.

Flat circular glass stage plate of 100mm with 2 clips.

Two in-built integral illuminators 6V, 20W, one incident light source and the other below the diffuser plate in the base. A selector switch allows either or both light to be selected depending on the specimen being viewed. Operates on 220V, 50Hz AC mains.
